A 40-gallon water heater is a common and often economical choice for smaller or moderate-demand households, but tank size alone does not determine whether it will provide enough hot water. The right choice depends on the exact model’s first-hour rating, recovery rate, fuel type, fixture use, and the amount of demand during the household’s busiest hour.
For a compatible professional replacement, most homeowners should plan on approximately $1,200 to $2,500 installed. Projects involving power venting, gas or electrical corrections, difficult access, relocation, or fuel conversion can cost $2,500 to $4,500 or more.
These are broad planning ranges rather than guaranteed local prices. The final cost depends on the equipment selected, installation location, existing connections, utility capacity, venting, removal, permits, and any necessary corrective work.
40-Gallon Water Heater Installation Cost
| Installation Scenario | Broad Installed Planning Range | Typical Scope |
|---|---|---|
| Compatible 40-gallon electric replacement | $1,100–$2,000 | Same location, compatible 240-volt circuit, manageable access, and routine plumbing connections |
| Compatible atmospheric-gas replacement | $1,300–$2,500 | Same location, suitable gas supply, compatible venting, and limited corrective work |
| Replacement with moderate corrections | $1,800–$3,200 | Connection changes, vent repairs, drainage work, expansion control, circuit corrections, or permit-related work |
| Power-vent, direct-vent, relocation, or capacity-change project | $2,500–$4,500+ | Higher-cost equipment, new vent routing, blower power, utility changes, or installation in a different location |
| Major fuel conversion or difficult construction | $3,500–$6,000+ | New gas or electrical infrastructure, extensive access work, framing, restoration, or work by multiple trades |
A low quote is not automatically a bargain, and a high quote is not automatically excessive. The useful comparison is whether each contractor has priced the same equipment class and installation scope.
For broader storage-tank pricing across different capacities and project types, review our tank water heater installation cost guide.
Why Published 40-Gallon Cost Estimates Vary
Online estimates often differ because they are not measuring identical projects. One price may represent a basic electric replacement using existing connections, while another may include a gas power-vent model, removal, permits, vent changes, and corrective work.
The most important differences include:
- Gas versus electric equipment
- Atmospheric, direct, or power venting
- Standard versus high-recovery performance
- Tall versus short tank configuration
- Equipment-only versus fully installed pricing
- Same-location replacement versus relocation
- Existing gas, electrical, and vent capacity
- Delivery and removal access
- Permit and inspection requirements
- Local labor and material costs
A national average is useful for initial planning, but the exact model and project scope determine whether a specific quote is reasonable.
Equipment-Only Price Versus Installed Cost
The purchase price of the heater is only one part of the project. Basic 40-gallon atmospheric-gas and electric-resistance models may cost several hundred dollars before installation, while power-vent, direct-vent, premium-efficiency, and specialized models can cost substantially more.
The installed total may also include:
- Delivery and placement
- Draining and disconnecting the old heater
- Removal and disposal
- Water-piping connections
- Gas or electrical connections
- Venting or exhaust work
- Temperature-and-pressure relief discharge piping
- Drainage or leak-protection provisions where applicable
- Expansion control where required
- Permit and inspection fees
- Startup and operating checks
- Warranty registration
A retail equipment price should not be compared directly with a contractor’s complete installed proposal.
Why 40-Gallon Installations Can Be Economical
A 40-gallon unit may be easier and less expensive to install than a larger tank when the home already has a compatible 40-gallon system.
Potential advantages include:
- A smaller footprint than many larger-capacity tanks
- More tall and short configuration options
- Lower equipment cost than many 50- or 75-gallon models
- Easier handling through doors, stairs, and closets
- A greater likelihood of matching existing residential utility capacity
- Less stored weight than a larger tank
These advantages are not universal. A high-input power-vent gas model can require more supporting work than a basic 50-gallon electric heater. The contractor still needs to evaluate the exact model rather than assuming that every 40-gallon installation will be simple.
Replacement Versus New Installation
The largest cost divider is how much of the existing installation can safely and practically be reused.
Compatible Like-for-Like Replacement
A compatible replacement means removing an existing 40-gallon heater and installing a new unit in the same location with substantially similar fuel, electrical, venting, and connection requirements.
This is usually the least expensive path when:
- The new heater fits the existing location and access route
- The water connections need only routine adjustments
- The gas supply or electrical circuit supports the exact model
- The existing vent is compatible and in acceptable condition
- The floor or platform remains suitable
- Drainage and safety components are acceptable where applicable
- No major restoration or relocation is required
Even a same-location replacement should not be treated as an automatic swap. Existing piping, venting, electrical work, drainage, and support conditions still need to be inspected.
For the broader financial and project-scope considerations involved in replacing an aging unit, see our water heater replacement cost guide.
Replacement With Corrective Work
A replacement moves into a higher price range when the heater remains in the same location but one or more supporting systems need repair or modification.
Common examples include:
- Replacing deteriorated or incompatible vent components
- Correcting an inadequate gas supply
- Repairing or replacing an unsuitable electrical circuit
- Correcting relief-discharge piping
- Adding expansion control where required by the plumbing-system configuration
- Improving drainage or leak protection where applicable
- Replacing damaged shutoff valves or connectors
- Correcting an unstable or deteriorated platform
- Completing permit-related corrective work
Each correction should be tied to an identifiable condition, manufacturer requirement, or locally enforced rule. A vague line item labeled “code upgrades” is not enough.
New Location or Relocation
A project becomes more expensive when the contractor must install the heater where no previous unit existed or move it to a different location.
The scope can include:
- New hot- and cold-water piping
- New gas piping or a dedicated electrical circuit
- A new vent, exhaust, or combustion-air route
- Drainage or condensate provisions
- Framing or access modifications
- Drywall, trim, paint, or finish restoration
- Separate plumbing, gas, electrical, or building approvals
- Additional inspections and return visits
Relocation should not be priced as a routine replacement. It is a broader construction project built around the new appliance.
Gas Versus Electric 40-Gallon Installation Costs
A compatible electric-resistance replacement is often less expensive than a comparable gas installation because it does not require combustion venting. That advantage can disappear when the home needs a new circuit, wiring correction, disconnect, panel work, or greater electrical-service capacity.
A 40-gallon gas heater may cost more to install because the project can involve gas-supply verification, combustion air, venting, and exhaust termination. Gas models may also provide stronger recovery, but performance varies significantly by model.
| System Type | Broad Installed Planning Range | Main Installation Questions |
|---|---|---|
| Compatible electric-resistance replacement | $1,100–$2,000 | Are the existing circuit, voltage, breaker, conductors, and disconnect arrangement suitable? |
| Compatible atmospheric-gas replacement | $1,300–$2,500 | Is the gas supply adequate, and can the existing vent be safely reused? |
| Power-vent or direct-vent gas installation | $2,500–$4,500+ | Where will the intake or exhaust terminate, and is electrical power available where required? |
| Fuel conversion | $3,500–$6,000+ | What new utility, venting, restoration, and permit work is required? |
For a broader comparison of equipment cost, operating expense, efficiency, and ownership trade-offs, review our gas versus electric water heater cost guide.
Atmospheric-Vent Versus Power-Vent Gas Models
The term “40-gallon gas water heater” covers several different vent configurations.
| Vent Type | How It Works | Cost Considerations |
|---|---|---|
| Atmospheric vent | Uses natural draft through an approved vent or chimney system | Often the least expensive option when the existing vent is compatible and in acceptable condition |
| Direct vent | Draws combustion air from outside and vents combustion products outdoors | Requires an approved intake and exhaust arrangement for the selected model |
| Power vent | Uses an electric blower to move exhaust through an approved vent system | Involves higher equipment cost, blower power, and a model-specific exhaust route |
| Power direct vent | Uses powered exhaust and a dedicated outside combustion-air intake | Requires planning for both intake and exhaust routes |
Two gas heaters with the same nominal 40-gallon capacity can have different equipment prices, burner inputs, venting requirements, and first-hour ratings.
Tall Versus Short 40-Gallon Water Heaters
Forty-gallon heaters are available in different physical configurations. A tall model may fit a narrow mechanical area, while a short model may work better beneath a low ceiling or in a compact utility space.
| Configuration | Potential Advantage | What to Verify |
|---|---|---|
| Tall model | Narrower footprint on some products | Available height, vent height, ceiling clearance, and connection positions |
| Short model | Lower overall height | Wider diameter, doorway clearance, floor space, and first-hour performance |
| Lowboy or compact model | Useful in specialized low-clearance spaces | Available capacity, electrical requirements, service access, and replacement availability |
A replacement should be selected using the exact model dimensions. Two products labeled “40 gallons” may differ in height, diameter, connection placement, vent position, and required service clearances.
Tank Capacity Is Not the Same as Hot-Water Performance
A 40-gallon label describes nominal storage capacity. It does not fully describe how much hot water the heater can deliver during the household’s busiest hour.
The more useful performance figures are:
- First-hour rating: the estimated amount of hot water a fully heated storage heater can supply during the first hour of use
- Recovery rate: how quickly the heater can heat incoming water after hot water is drawn
- Input: the burner or electrical energy available to heat the water
- Temperature rise: the difference between incoming-water temperature and the target water temperature
ENERGY STAR identifies first-hour rating as a key storage-water-heater performance measure. Homeowners should compare the certified first-hour rating of the exact models being quoted rather than relying only on tank capacity.
Current 40-gallon products illustrate why this matters. Depending on the design, representative gas models can have first-hour ratings ranging from the high 60s to the 80-gallon range. A high-recovery 40-gallon model may therefore meet a household’s peak demand better than a larger but slower-recovering tank.
Who Is a 40-Gallon Water Heater Best For?
A 40-gallon heater can be appropriate for a small or moderate-demand household, but occupant count alone is not a dependable sizing method.
It may work well when:
- Hot-water use is staggered throughout the day
- Showers are not frequently operated at the same time
- Fixtures have moderate flow rates
- Laundry and dishwasher use rarely overlap with bathing
- The selected model has enough first-hour output for the home’s busiest period
- The current 40-gallon heater already meets household demand
A 40-gallon heater may be too small when:
- Several showers occur back-to-back
- Two showers frequently operate at the same time
- A large soaking or whirlpool tub is used regularly
- Laundry or dishwasher use overlaps with bathing
- The household uses high-flow or multi-head shower systems
- The existing heater regularly runs out of hot water despite operating correctly
| Household Pattern | What to Evaluate |
|---|---|
| One or two staggered showers | Certified first-hour rating and recovery between uses |
| Several morning showers | Total peak-hour demand rather than occupant count alone |
| Two showers at once | Combined fixture flow and sustained recovery |
| Large soaking tub | Tub fill volume and remaining hot water for other fixtures |
| Efficient fixtures and staggered use | Whether a 40-gallon high-recovery model already provides enough output |

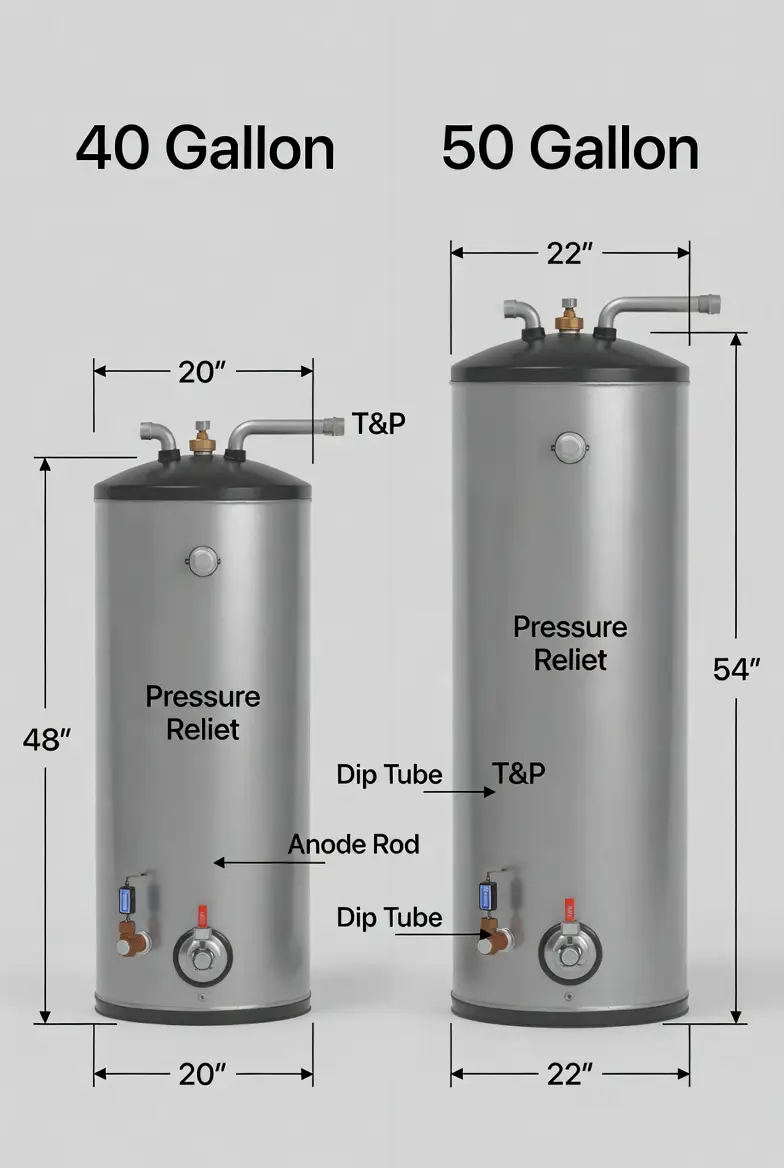

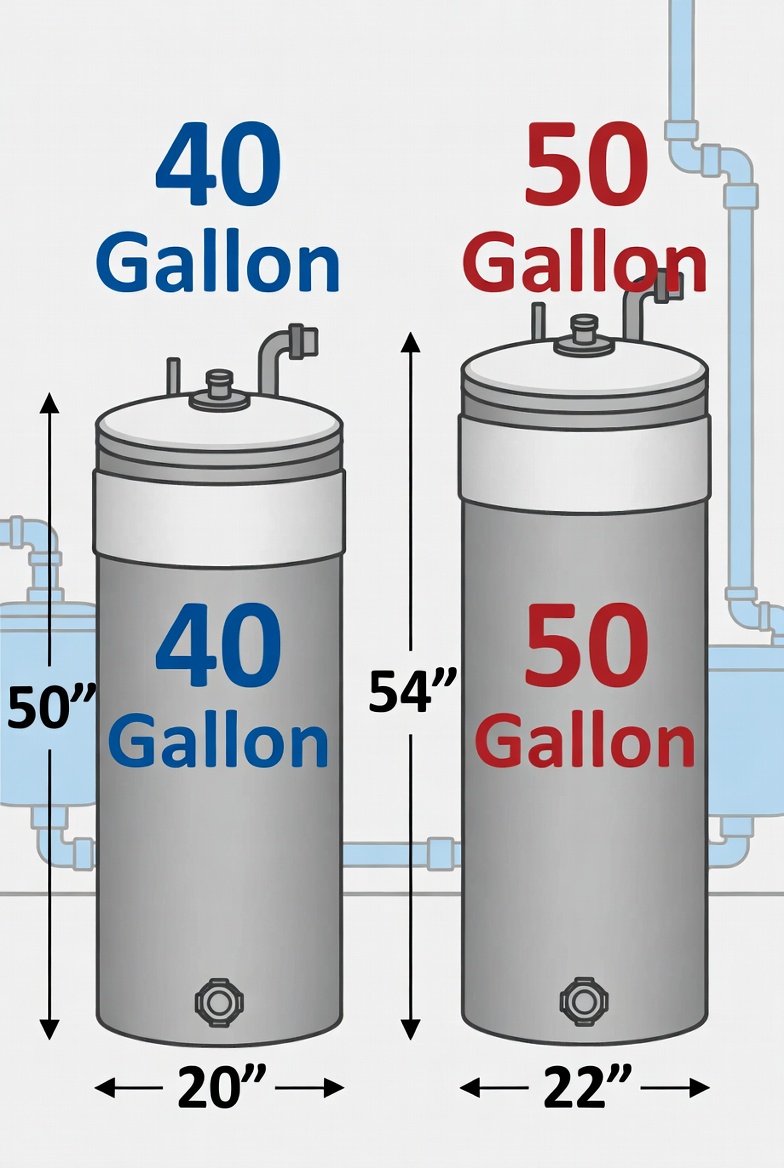

40-Gallon Versus 50-Gallon Water Heater
The decision between 40 and 50 gallons should be based on peak-hour performance, available space, equipment cost, and expected household demand—not on a simple people-per-gallon rule.
| Decision Factor | 40-Gallon Tank | 50-Gallon Tank |
|---|---|---|
| Equipment price | Often lower | Usually somewhat higher |
| Physical size | Often easier to fit | May require more height or floor space |
| Stored reserve | Lower | Higher |
| First-hour performance | Varies widely by model | Varies widely by model |
| Best fit | Small or moderate peak demand | Higher or more concentrated demand |
| Upgrade value | Strong when current demand is already met | Useful when the additional reserve solves a measured shortage |
Staying with 40 gallons usually makes sense when the current system meets demand, the location is tight, and a compatible replacement avoids unnecessary infrastructure changes.
Moving to 50 gallons deserves consideration when hot-water shortages occur regularly, household demand has increased, large fixtures are used frequently, or the additional capacity can be installed without disproportionate utility or space changes.
Will a 40-Gallon Water Heater Fit?
Model selection should not be finalized until the contractor checks the full delivery route, final location, and required service clearances.
Access and Fit Checklist
- Exterior entrance width
- Interior doorway and closet-opening width
- Stair width, turns, and landings
- Ceiling and vent height
- Available floor area
- Tank diameter
- Connection locations
- Required service clearances
- Drain-pan dimensions where applicable
- Old-unit removal route
- Whether doors, railings, or trim must be temporarily removed
The new unit may not have the same dimensions as the old heater even when both are described as 40 gallons. Insulation thickness, vent configuration, controls, and product design can materially change the footprint.
Filled Weight and Support
Water weighs approximately 8.34 pounds per gallon. Forty gallons of water therefore weighs about 334 pounds before the tank itself is included.
The exact filled weight varies by model. Homeowners and contractors should use the manufacturer’s listed product weight when evaluating an elevated platform, wood-framed floor, attic location, or damaged support structure.
This does not mean that every 40-gallon installation requires structural reinforcement. A sound slab-supported installation may need no special support work. Evaluation becomes more important when the existing platform is deteriorated, the heater is elevated, or the load path is uncertain.
A 40-gallon water heater is often an economical replacement when the existing location, utilities, venting, and household demand are already compatible. The lowest-cost projects are genuine like-for-like replacements. Costs rise when the home needs a different vent type, utility corrections, difficult access work, relocation, or fuel conversion.
Gas Installation Requirements
A 40-gallon gas water heater may be relatively straightforward to replace when the new model matches the existing fuel supply, vent configuration, location, and connections. However, the contractor still needs to verify the exact appliance rather than assuming that every 40-gallon gas heater has the same installation requirements.
The installation assessment should consider:
- Burner input
- Total connected gas load
- Gas-pipe material, diameter, and developed length
- Available supply pressure
- Meter and regulator capacity where relevant
- Vent type and termination
- Combustion-air requirements
- Electrical power for powered venting equipment
- Required installation and service clearances
Gas Shutoff Valve and Sediment Trap
The gas connection should include the components required for the selected appliance and the locally enforced installation rules. Depending on the system and jurisdiction, this may include an accessible manual shutoff valve and a sediment trap installed in accordance with the applicable requirements and manufacturer instructions.
These components should not be added or omitted based solely on a generic installation package. The contractor should identify what is required for the actual appliance and location.
Gas-Supply Verification
A 40-gallon heater does not automatically require larger gas piping. The decision depends on the new model’s input rating and the capacity of the existing gas system.
A proper evaluation considers:
- The heater’s nameplate input
- Other gas appliances served by the same system
- Pipe size and material
- Developed length and fittings
- Available supply pressure
- Meter and regulator capacity where relevant
The quote should explain the reason for any gas-piping change. Statements such as “the new heater is larger” or “this is required by code” are not complete technical explanations.
Combustion Air
Atmospheric and other combustion-based gas models need an approved source of combustion air. The required arrangement depends on the appliance, room configuration, enclosure, nearby openings, manufacturer instructions, and locally enforced requirements.
A closet or small utility room that worked with an older appliance may not automatically be suitable for a new model. The contractor should evaluate the actual space and the requirements of the exact heater being installed.
Atmospheric, Direct, and Power Venting
The vent configuration can materially change the equipment price, installation scope, and final project cost.
| Vent Configuration | Installation Considerations |
|---|---|
| Atmospheric vent | Requires a compatible natural-draft vent or chimney system and an approved combustion-air arrangement |
| Direct vent | Uses a model-specific outdoor combustion-air and exhaust arrangement |
| Power vent | Uses an electric blower and requires an approved exhaust route, termination, and electrical supply |
| Power direct vent | Uses powered exhaust and a dedicated outdoor combustion-air intake |
Existing venting should be reused only after its material, size, route, condition, termination, and compatibility with the new heater have been evaluated.
Electric Installation Requirements
A compatible 40-gallon electric-resistance replacement can be simpler than a gas installation because it does not require combustion venting. It still requires verification of the exact electrical load and the condition of the existing circuit.
The installer or electrician should confirm:
- Required voltage
- Element wattage or nameplate load
- Breaker rating
- Conductor size and condition
- Grounding and bonding provisions where applicable
- Disconnect requirements
- Available electrical-service capacity
- Whether the existing circuit is dedicated and suitable
An empty breaker position does not prove that the home can support the heater. A panel or service upgrade should be recommended only after evaluating the exact appliance load and the home’s available electrical capacity.
Why Fixed Labor Percentages Are Misleading
There is no dependable universal percentage showing how much of a 40-gallon installation goes to equipment, labor, materials, or permits.
The cost balance changes by project type:
- A basic electric replacement may be dominated by equipment and routine installation labor.
- A power-vent gas installation may involve higher equipment, venting, and electrical costs.
- A relocation may require plumbing, gas, electrical, framing, and finish work.
- A difficult attic or basement installation may involve substantial handling and access labor.
Homeowners should compare the actual equipment and written project scope rather than relying on a generic percentage formula.
What a Complete 40-Gallon Installation Quote Should Include
The phrase “standard installation” is too vague unless the contractor defines what it includes. A useful quote should identify the equipment, installation work, exclusions, and conditions that could create additional charges.
| Quote Component | What Should Be Identified |
|---|---|
| Exact water heater | Manufacturer, model, capacity, fuel type, vent configuration, first-hour rating, efficiency rating, and warranty |
| Delivery and placement | How the new unit will reach the installation location and whether special handling is included |
| Old-unit removal | Draining, disconnecting, physical removal, hauling, and disposal |
| Water connections | Shutoff valve, connectors, piping modifications, and required fittings |
| Gas work | Connection, supply verification, piping changes, and testing where applicable |
| Electrical work | Circuit, breaker, conductors, disconnect, receptacle, or service work where applicable |
| Venting and combustion air | Vent type, material, route, termination, and combustion-air provisions for gas equipment |
| Temperature-and-pressure protection | Relief valve and complete discharge-piping scope |
| Expansion control | Whether the plumbing-system configuration requires it and whether it is included |
| Drainage and leak protection | Drain pan, drain route, condensate, leak-detection, or automatic-shutoff provisions where applicable |
| Support and platform work | Any repair, replacement, elevation, or structural evaluation included in the quote |
| Permit and inspection | Who obtains the permit, which fees are included, and who attends the inspection |
| Startup and commissioning | Filling, purging, leak testing, startup, temperature setting, and operating checks |
| Warranty | Manufacturer coverage, labor warranty, registration, and application limitations |
| Restoration | Drywall, trim, paint, framing, or finish repair included or excluded |
The quote does not need to list every minor fitting separately. It should provide enough detail to show what the contractor is supplying and which conditions could lead to a change order.
Common Costs That May Be Excluded
The following items are not required in every installation. They become legitimate additional costs when the existing home, selected model, manufacturer instructions, or locally enforced requirements create the need.
| Possible Additional Work | When It May Be Needed |
|---|---|
| Expansion control | The plumbing system is closed or an approved control method is required for the installation |
| Drain pan and drain route | The location and applicable requirements call for water-damage protection |
| Vent repair or replacement | The existing vent is deteriorated, incompatible, incorrectly configured, or unsuitable for the new heater |
| Electrical circuit correction | The existing circuit, breaker, conductors, or disconnect are unsuitable for the exact model |
| Electrical panel or service work | A load evaluation shows that the home lacks sufficient capacity |
| Gas-piping modification | The existing supply cannot serve the heater and the home’s other connected appliances |
| Combustion-air correction | The gas-appliance location does not provide the required air arrangement |
| Seismic restraint | Applicable regional requirements call for an approved restraint system |
| Platform or support correction | The existing support is damaged, unstable, or unsuitable for the new unit |
| Access modification | Doors, railings, trim, framing, or openings must be changed to move the equipment |
| Finish restoration | New piping, wiring, venting, or access work disturbs finished surfaces |
| Additional permit scope | The project includes separate plumbing, gas, electrical, or building work |
The contractor should connect each additional charge to a visible condition, calculation, manufacturer requirement, or locally enforced rule. These costs should not be added merely because the project involves a water heater.
For a detailed explanation of when expansion control may be needed, review our water heater expansion tank cost guide.
How Installation Location Affects Cost
The installation location affects delivery, removal, utility access, drainage, venting, working space, and the consequences of a future leak. No location is automatically inexpensive or expensive without considering the actual house and equipment.
Garage Installation
A slab-supported garage is often one of the more manageable locations because it may provide direct access and a stable floor. The quote may still need to address:
- Long plumbing or gas runs
- Vent routing
- Freeze exposure
- Drainage
- Vehicle-impact protection where applicable
- Appliance elevation or ignition-source protection where applicable
Basement Installation
A basement can provide useful mechanical space, but stairs, turns, and removal access may control the amount of labor required.
Costs can rise because of:
- Narrow stairways
- Sharp turns or low ceilings
- Limited drainage options
- Long vent or exhaust routes
- Difficulty removing the old tank
- Finished walls or ceilings in the work path
Closet or Interior Utility-Room Installation
Interior installations require careful attention to dimensions, service clearance, venting, combustion air, drainage, and water-damage exposure.
A closet that accommodated the old unit may not fit a wider replacement or provide the required clearances for a different vent configuration. The exact model should be compared with the actual opening and available space before purchase.
Attic Installation
An attic installation should be evaluated as a feasibility decision rather than assigned a universal price premium.
The contractor may need to evaluate:
- The exact filled weight
- Joists, platform, and load path
- Access opening and service pathway
- Removal of the old heater
- Working clearance
- Lighting and service provisions where applicable
- Drain-pan and drain-route requirements
- Leak-detection or automatic-shutoff options
- Freeze and extreme-temperature exposure
- The consequences of a tank or connection failure
Minor handling difficulty may add limited labor, while access enlargement, platform work, drainage changes, framing, or structural evaluation can add substantially more. A fixed attic surcharge is therefore not dependable.
Manufactured-Home Installation
A manufactured home may require equipment specifically listed or approved for that application. The contractor should verify the product classification, fuel configuration, combustion-air arrangement, venting, access, and manufacturer warranty before installation.
A standard site-built residential model should not be assumed suitable without checking the exact product requirements.
Permit and Inspection Requirements
Permit and inspection fees vary by jurisdiction and project scope. A compatible same-location replacement may involve a relatively limited approval process, while relocation, fuel conversion, or separate gas, electrical, plumbing, or structural work may require additional permits or inspections.
The quote should state:
- Whether a permit is required
- Who is responsible for obtaining it
- Which fees are included
- Which inspections apply
- Who attends the inspection
- Whether correction work is included or priced separately
Permits and inspections help document the work and provide an opportunity to identify installation problems. They do not guarantee that every future property, insurance, warranty, or resale issue will be avoided.
Requirements depend on the locally adopted code, local amendments, the authority having jurisdiction, the appliance type, and the manufacturer’s installation instructions. For a broader explanation, review our water heater code requirements guide.
How Long Does a 40-Gallon Installation Take?
A compatible replacement with good access may be completed within part of a working day. Projects involving vent changes, utility corrections, difficult handling, relocation, or multiple inspections can require a full day, several visits, or multiple working days.
| Project Type | Practical Scheduling Range |
|---|---|
| Accessible compatible replacement | Approximately half a working day |
| Replacement with moderate corrections | Most of a working day |
| New venting, utility changes, or difficult access | One to two working days |
| Major relocation, fuel conversion, or construction work | Multiple visits or several days |
These are scheduling ranges rather than guarantees. Permit availability, inspections, ordered parts, and work by separate trades can extend the overall calendar even when the physical heater installation takes only one day.
For a broader explanation of project timing, see our guide to how long it takes to install a water heater.
What “Standard Installation” Should Mean
A standard 40-gallon installation should describe a compatible same-location replacement with suitable access, reusable infrastructure, routine connections, and no major corrective work.
It should not automatically include:
- Relocation
- Fuel conversion
- New gas or electrical infrastructure
- Major vent reconstruction
- Structural or framing work
- Extensive access modification
- Drywall, paint, or finish restoration
The most dependable quote identifies the exact heater, explains which existing components can be reused, connects each correction to a real condition, and clearly separates included work from potential change orders.
